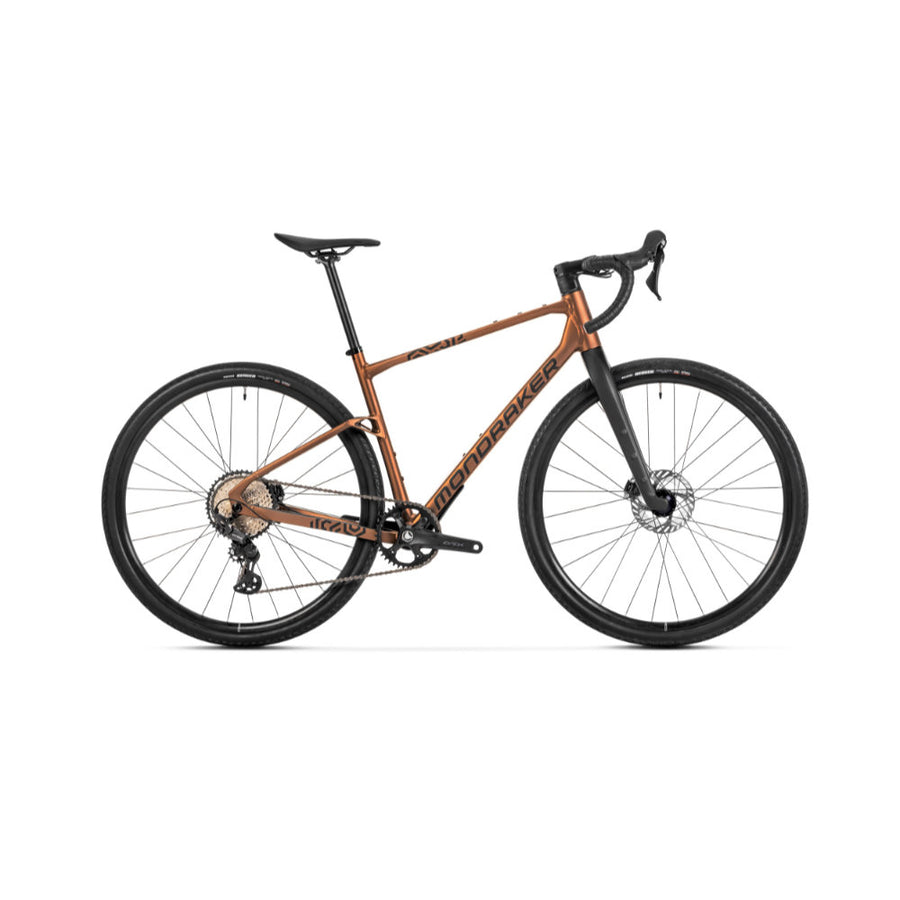

Mondraker Arid S EX DEMO

EX DEMO MODELS

These have had very light use as Demo bikes here at Boost, They have covered less than 200 miles and have been serviced/pdi'd after every demo.

Viewing in store welcomed

Features

Frame

• Arid alloy
• T47 bottom bracket
• Tapered head tube
• HHG internal cable routing
• 12x142mm rear axle
• 1X drivetrain design
• Flatmount brake compatible

Sizes

• S: 410mm
• M: 450mm
• ML: 480mm
• L: 510mm
• XL: 540mm

Fork

• Stealth Air Carbon tapered steerer tube
• HHG
• Flat mount integrated fork

Headset

• Onoff IS52/IS52
• 1-1/8", 1.5" head tube
• Sealed bearings
• Internal cable routing

Stem

• Onoff S3 6061 T6 Alloy
• 31.8mm barbore
• Rise: -7º
• Length:
  • S size: 60mm
  • M size: 70mm
  • ML size: 70mm
  • L size: 80mm
  • XL size: 90mm

Handlebar

• OnOff S3 GR 16º bar flare
• Width:
  • S size: 440mm
  • M size: 440mm
  • ML size: 460mm
  • L size: 460mm
  • XL size: 460mm

Grips

• OnOff HEX Bartape

Seatpost

• Onoff S3 0-R
• Diameter: 27.2mm
• Length: 400mm

Saddle

• FIZIK Terra Argo X5 140mm

Brakes

• Front brake: Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Rear brake: Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
• Brake lever: Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever

Wheels

• Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokes rear
• Spokes: Mavic Steel double butted flat spokes
• Front hub: Mavic, 12x100mm, IS 6 bolts
• Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub

Tires

• Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead

Drivetrain

• Crankset: Shimano GRX RX-610
  • S size: 170mm
  • M size: 170mm
  • ML size: 172.5mm
  • L size: 172.5mm
  • XL size: 175mm
  • CL 49.7
• Rings: Shimano 40T, direct mount, steel
• Bottom bracket: Token T47 BSA sealed bearings, 85.5mm
• Chain: Shimano SLX M7100, Quick link
• Rear derailleur: Shimano GRX RX-822-GS, 12s
• Shift levers: Shimano GRX RX-610 dual control, alloy lever
• Cassette: Shimano SLX M7100, hiperglide+, 10-45, 12s
• Derailleur hanger: Sram UDH

Weight

• 10.9 kg
